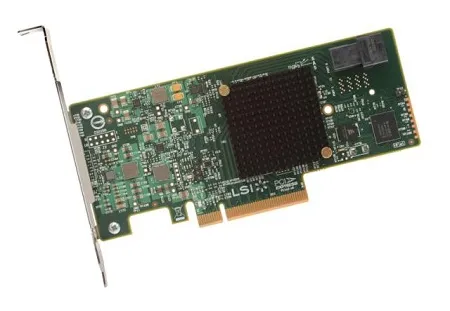

Broadcom LSI00419 9341-4i 12Gb/s PCI-Exp 3.0 4-Port Internal SAS/SATA RAID Controller

BROADCOM LSI00419 9341-4i 12gb/s Pci-exp 3.0 4-port Internal Sas/sata Raid Controller

Key Features :

Raid-on-chip Controller: Lsisas3008 Powerpc 476 Controller 1.2 Ghz

Physical Dimensions : 6.6 X 2.536 (low-profile)

Host Bus Type: X8 Lane Pci Express 3.0

Internal Ports: 4

Data Transfer Rates: Up To 12gb/s Per Port

Devices Supported :

– Non-raid (jbod Mode): 64

– Raid 0: 32 Per Volume

– Raid 1: 2 Per Volume Plus Hot Spare

– Raid 5: 32 Per Volume

– Raid 10: 32 Per Volume

– Raid 50: 32 Per Volume

Internal Connectors : 1 Hd Mini-sas Sff8643 (horizontal Mount)

Mtbf : >2,800,000 Hours

Operating Temperature : 0°c To 70°c

Operating Voltage : +12v

Condition: Refurbished.

Availability: In Stock.

Our Warranty: 90 Days.
