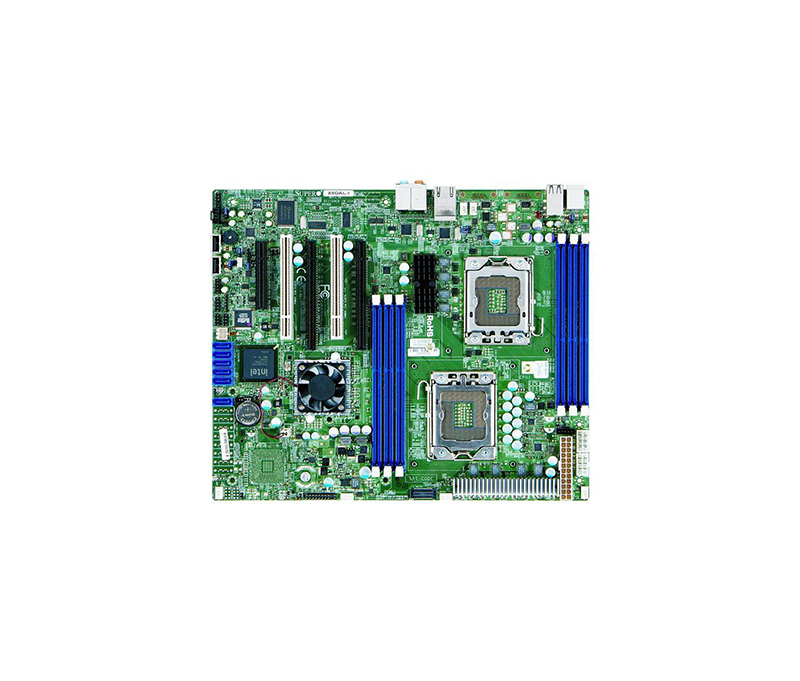

X9DBL-3F – Supermicro Socket LGA1356 C602 Chipset ATX Motherboard
Description
Supermicro X9DBL-3F Socket LGA1356 Intel C602 Chipset ATX System Board (Motherboard) Supports 2x Xeon E5-2400/E5-2400 v2 Series DDR3 6x DIMM
Technical Information
| Ethernet Standard | Gigabit Ethernet |
|---|---|
| Memory Technology | DDR3 SDRAM |
| RAM Genre | RDIMM, LRDIMM |
| Socket Type | Socket B2 LGA-1356 |
| Chipset Vendor | Intel |
| Chipset Model | C606 |
| Quantity of Processor Supported | 2 |
| Supported Processor | Xeon E |
| Built-in Processor Vendor | Intel |
| Built-in Processor Type | Xeon |
| Built-in Processor Model | E5-2400 |
| Built-in Processor Speed | 2.1 |
| Built-in Processor Core | Octa-core (8 Core) |
| Quantity of Memory Slots | 6 |
| Maximum Memory | 384 |
| Controller Type | Serial ATA/600 |
| Raid Supported | Yes |
| Raid Levels | 0, 1, 5, 10 |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Vendor | Matrox |
| Graphics Controller Model | G200eW |
Interfaces/Ports
| Quantity of Expansion Slots | 6 |
|---|---|
| Quantity of PCI Express Slots | 6 |
| Quantity of PCI Express x4 Slots | 1 |
| Quantity of PCI Express x8 Slots | 3 |
| Quantity of PCI Express x16 Slots | 1 |
| Quantity of USB Ports | 7 |
| Quantity of USB 2.0 Ports | 7 |
| VGA Port | Yes |
| Ethernet Port (RJ-45) | Yes |
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 3 |
| Quantity of SATA Interfaces | 6 |
| Quantity of SAS Interfaces | 8 |
| Quantity of Onboard USB Ports | 7 |
Physical Characteristics
| Form Factor | ATX |
|---|---|
| Height | 12 |
| Width | 10 |
Miscellaneous
| Compliance Standards | RoHS |
|---|
Compatibility
- CSE-842TQ-665B
- CSE-842TQ-865B
- CSE-813MTQ-R400CB
- CSE-823TQ-653B
Additional information
| Height |
12 |
|---|---|
| Width |
10 |
| Compliance Standards |
RoHS |
| Ethernet Standard |
Gigabit Ethernet |
| Form Factor |
ATX |
| Memory Technology |
DDR3 SDRAM |
| Ram Genre |
RDIMM ,LRDIMM |
| Socket Type |
Socket B2 LGA-1356 |
| LAN Ports RJ45/SFP/SFP+ |
3 |
| VGA Port |
Yes |
| Quantity of Expansion Slots |
6 |
| Chipset Vendor |
Intel |
| Quantity of USB Ports |
7 |
| Chipset Model |
C606 |
| Processors Supported |
2 |
| Supported Processor |
Xeon E |
| Built-in Processor Vendor |
Intel |
| Built-in Processor Type |
Xeon |
| Built-in Processor Model |
E5-2400 |
| Built-in Processor Speed |
2.1 |
| Built-in Processor Core |
Octa-core (8 Core) |
| Quantity of Memory Slots |
6 |
| Maximum Memory |
384 |
| Controller Type |
Serial ATA/600 |
| Raid Supported |
Yes |
