X11SSW-F – Supermicro C236 Chipset Proprietary Motherboard DDR4
Description

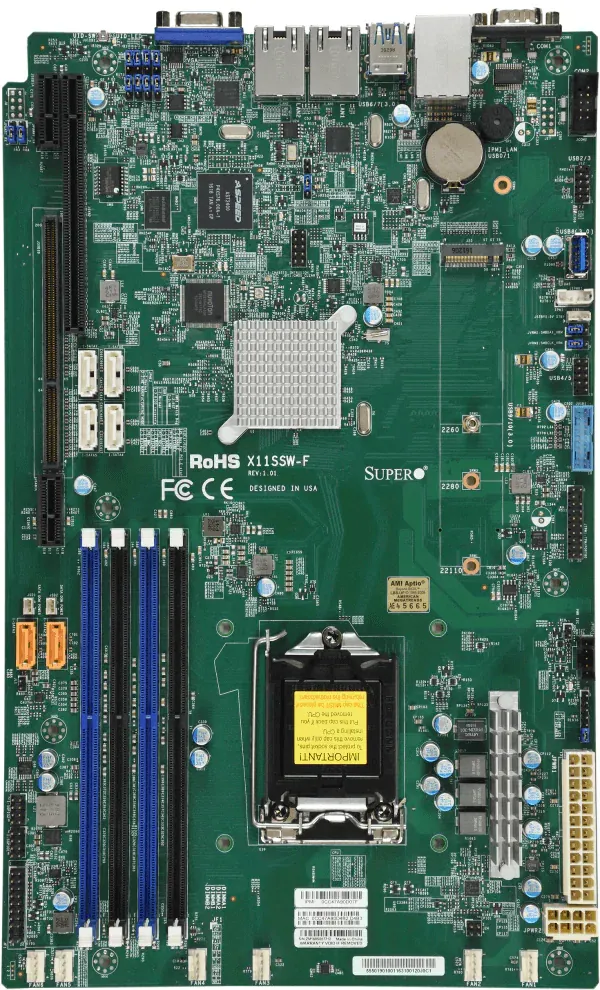

Supermicro X11SSW-F Socket LGA1151 Intel C236 Chipset Proprietary System Board (Motherboard)
Technical Information
| Ethernet Standard | Gigabit Ethernet |
|---|---|
| Memory Technology | DDR4 SDRAM |
| RAM Genre | UDIMM |
| Socket Type | Socket H4 LGA-1151 |
| Chipset Vendor | Intel |
| Chipset Model | C236 |
| Quantity of Processor Supported | 1 |
| Supported Processor | Xeon E |
| Built-in Processor Vendor | Intel |
| Built-in Processor Type | Xeon |
| Built-in Processor Model | E3-1200 |
| Built-in Processor Speed | 3.7 |
| Built-in Processor Core | Quad-core (4 Core) |
| Quantity of Memory Slots | 4 |
| Maximum Memory | 64 |
| Controller Type | Serial ATA/600 |
| RST (Specefic for Intel) | Yes |
| Raid Supported | Yes |
| Raid Levels | 0, 1, 5, 10 |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Vendor | ASPEED |
| Graphics Controller Model | AST2400 BMC |
Interfaces/Ports
| Quantity of Expansion Slots | 3 |
|---|---|
| Quantity of PCI Express Slots | 2 |
| Quantity of PCI Express x4 Slots | 1 |
| Quantity of PCI Express x16 Slots | 1 |
| Quantity of USB Ports | 11 |
| Quantity of USB 2.0 Ports | 6 |
| VGA Port | Yes |
| Quantity of SATA Interfaces | 6 |
| Quantity of M.2 Interfaces | 1 |
| Quantity of Onboard USB Ports | 11 |
| Quantity of Onboard USB 3.0 Ports | 5 |
Physical Characteristics
| Form Factor | Proprietary Form Factor |
|---|---|
| Height | 8 |
| Width | 13 |
Miscellaneous
| Compliance Standards | RoHS |
|---|
Compatibility
- SC116AC2-R706WB
- SC815TQC-R504WB
- SC815TQ-R500WB
- SC514-R407W
- SYS-1019S-WR
- SYS-5019S-WR
Additional information
| Height |
8 |
|---|---|
| Width |
13 |
| Compliance Standards |
RoHS |
| Ethernet Standard |
Gigabit Ethernet |
| Form Factor |
Proprietary Form Factor |
| Memory Technology |
DDR4 SDRAM |
| Ram Genre |
UDIMM |
| Socket Type |
Socket H4 LGA-1151 |
| VGA Port |
Yes |
| Quantity of Expansion Slots |
3 |
| Chipset Vendor |
Intel |
| Quantity of USB Ports |
11 |
| Chipset Model |
C236 |
| Processors Supported |
1 |
| Supported Processor |
Xeon E |
| Built-in Processor Vendor |
Intel |
| Built-in Processor Type |
Xeon |
| Built-in Processor Model |
E3-1200 |
| Built-in Processor Speed |
3.7 |
| Built-in Processor Core |
Quad-core (4 Core) |
| Quantity of Memory Slots |
4 |
| Maximum Memory |
64 |
| Controller Type |
Serial ATA/600 |
| RST (Specefic for Intel) |
Yes |
| Raid Supported |
Yes |
