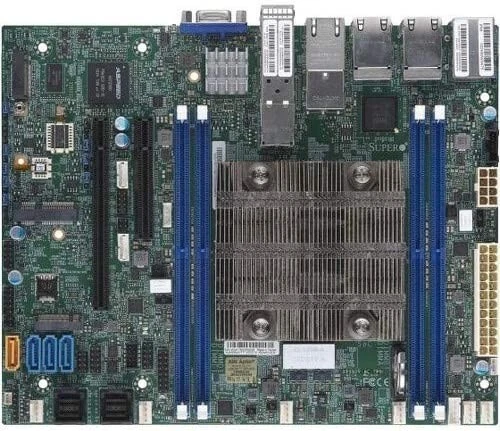

X11SDV-8C-TP8F – Supermicro BGA2518 Flex-ATX Motherboard D-2146NT
Description
Supermicro X11SDV-8C-TP8F Socket FCBGA-2518 System on Chip Chipset Flex-ATX System Board (Motherboard) Supports Xeon D-2146NT DDR4 4x DIMM
Technical Information
| Ethernet Standard | 10 Gigabit Ethernet |
|---|---|
| Memory Technology | DDR4 SDRAM |
| RAM Genre | RDIMM, LRDIMM |
| Quantity of Processor Supported | 1 |
| Supported Processor | Xeon D |
| Built-in Processor Vendor | Intel |
| Built-in Processor Type | Xeon |
| Built-in Processor Model | D-2141I |
| Built-in Processor Speed | 2.2 |
| Built-in Processor Core | Octa-core (8 Core) |
| Quantity of Memory Slots | 4 |
| Maximum Memory | 512 |
| Controller Type | Serial ATA/600 |
| Raid Supported | Yes |
| Raid Levels | 0, 1, 5, 10 |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Vendor | ASPEED |
| Graphics Controller Model | AST2500 BMC |
Interfaces/Ports
| Quantity of Expansion Slots | 5 |
|---|---|
| Quantity of PCI Express Slots | 3 |
| Quantity of PCI Express x8 Slots | 1 |
| Quantity of PCI Express x16 Slots | 1 |
| Quantity of USB Ports | 4 |
| Quantity of USB 2.0 Ports | 2 |
| VGA Port | Yes |
| Ethernet Port (RJ-45) | Yes |
| Quantity of Ethernet LAN Ports (RJ-45/SFP/SFP+) | 6 |
| Quantity of SATA Interfaces | 4 |
| Quantity of M.2 Interfaces | 2 |
| Quantity of Onboard USB Ports | 4 |
| Quantity of Onboard USB 3.0 Ports | 2 |
| Quantity of NVMe Ports | 2 |
Physical Characteristics
| Form Factor | Flex ATX |
|---|---|
| Height | 9 |
| Width | 7.25 |
Miscellaneous
| Compliance Standards | RoHS |
|---|
Compatibility
- SSG-5019D8-TR12P
- SYS-1019D-FRN8TP
- SYS-5019D-FN8TP
- SC505-203B
Additional information
| Height |
9 |
|---|---|
| Width |
7.25 |
| Compliance Standards |
RoHS |
| Ethernet Standard |
10 Gigabit Ethernet |
| Form Factor |
Flex ATX |
| Memory Technology |
DDR4 SDRAM |
| Ram Genre |
RDIMM ,LRDIMM |
| LAN Ports RJ45/SFP/SFP+ |
6 |
| VGA Port |
Yes |
| Quantity of Expansion Slots |
5 |
| Quantity of USB Ports |
4 |
| Processors Supported |
1 |
| Supported Processor |
Xeon D |
| Built-in Processor Vendor |
Intel |
| Built-in Processor Type |
Xeon |
| Built-in Processor Model |
D-2141I |
| Built-in Processor Speed |
2.2 |
| Built-in Processor Core |
Octa-core (8 Core) |
| Quantity of Memory Slots |
4 |
| Maximum Memory |
512 |
| Controller Type |
Serial ATA/600 |
| Raid Supported |
Yes |
| Raid Levels |
0 ,1 ,10 ,5 |
| Onboard Video |
On-board Video Chipset |
| Graphics Controller Vendor |
ASPEED |
