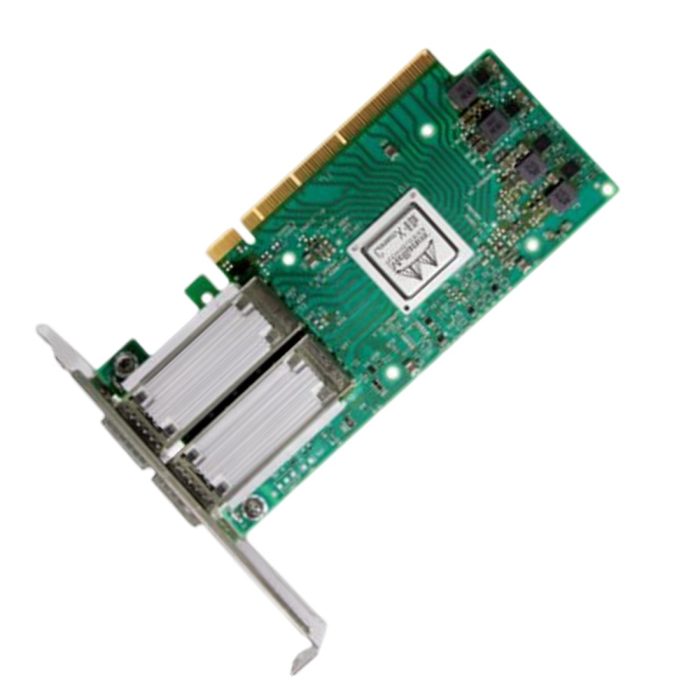

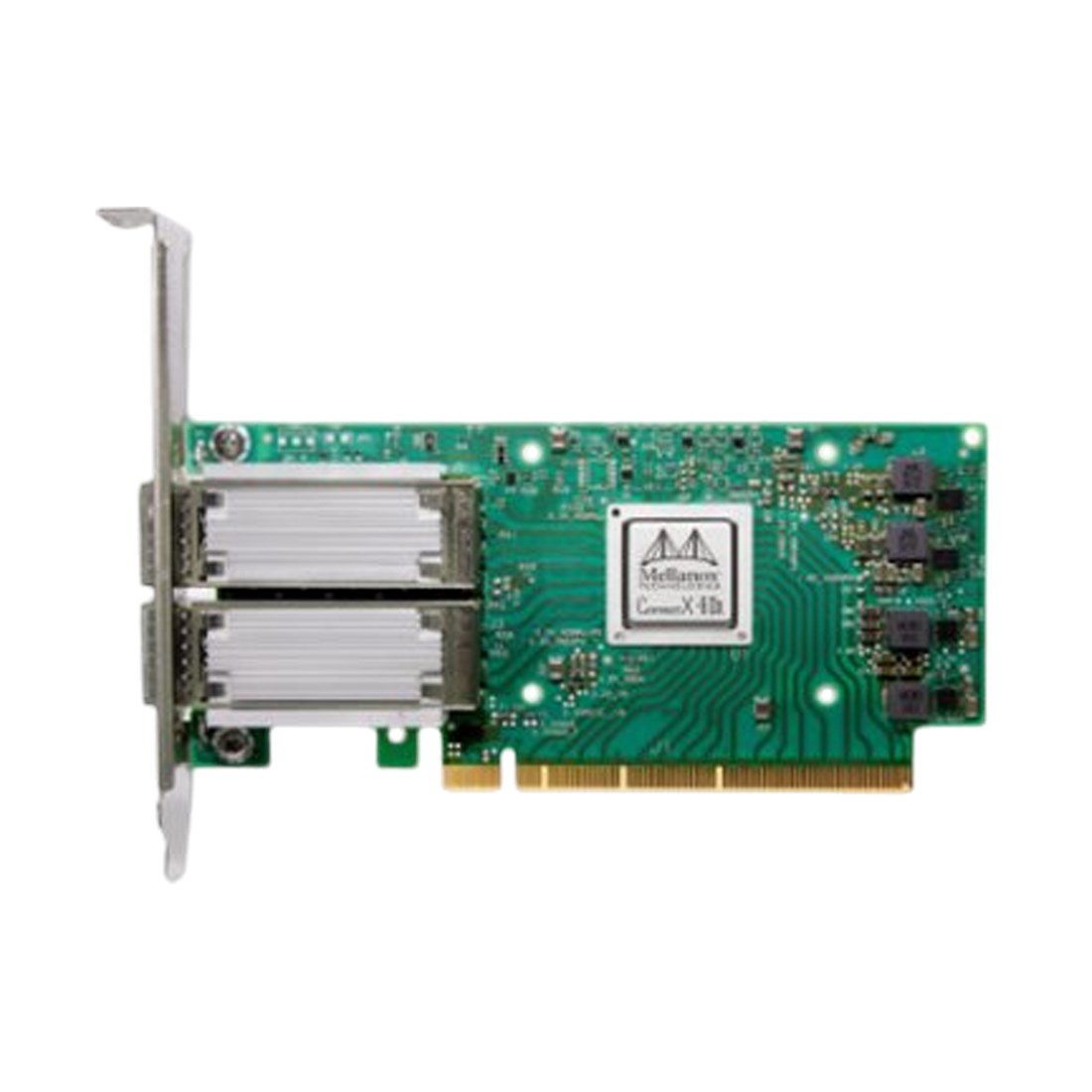

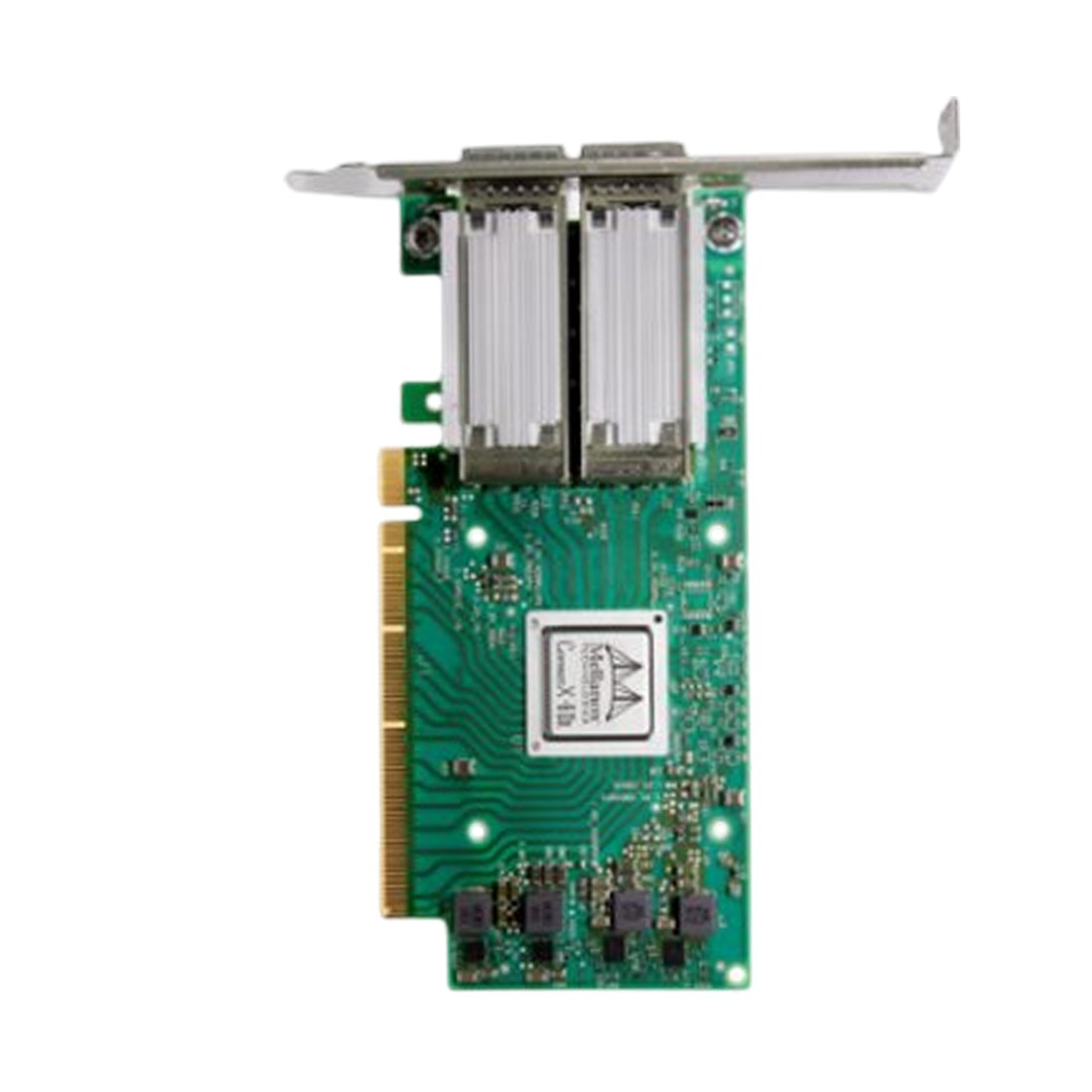

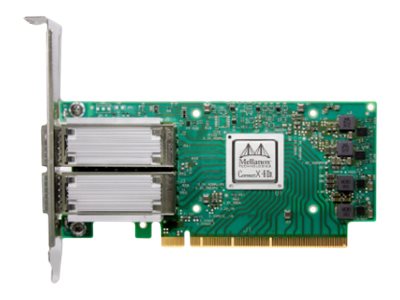

Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter Card 100GbE Dual-port QSFP56 PCIe 4.0 x16 No Crypto Ref

MELLANOX MCX623106AN-CDAT Connectx-6 Dx En Adapter Card 100gbe Dual-port Qsfp56 Pcie 4.0 X16 No Crypto

Specifications

Physical

Size: 5.59in. X 2.71in (142.00mm X 68.90mm)

Connector: Dual Qsfp56 Ethernet (copper And Optical)

Data Rate: Ethernet – 1/10/25/40/50/100 Gb/s

Protocol Support

Ethernet: 100gbase-cr2, 100gbase-cr4, 100gbase-kr4, 100gbase-sr4, 50gbase-r2, 50gbase-r4, 40gbase-cr4, 40gbase-kr4, 40gbase-sr4, 40gbase-lr4, 40gbase-er4, 40gbase-r2, 25gbase-r, 20gbase-kr2, 10gbase-lr,10gbase-er, 10gbase-cx4, 10gbase-cr, 10gbase-kr, Sgmii, 1000base-cx, 1000base-kx, 10gbase-sr, 100gbase-cr2, 100gbase-kr2, 100gbase-sr2

Pci Express Gen 3.0/4.0 Serdes @ 16.0gt/s, 16 Lanes (2.0 And 1.1 Compatible)

Capabilities Crypto Disabled Secure Boot Enabled

Power And Airflow

Typical Power Passive Cables – 18.7w (pcie Gen 3.0) 19.52w (pcie Gen 4.0)

Maximum Power Passive Cables – 25.28w (pcie Gen 3.0) 26.64w (pcie Gen 4.0)

Maximum Power Available Through Qsfp56 Port 5w (each Port)

Voltage: 3.3aux

Maximum Current: 100ma

Airflow Requirements
