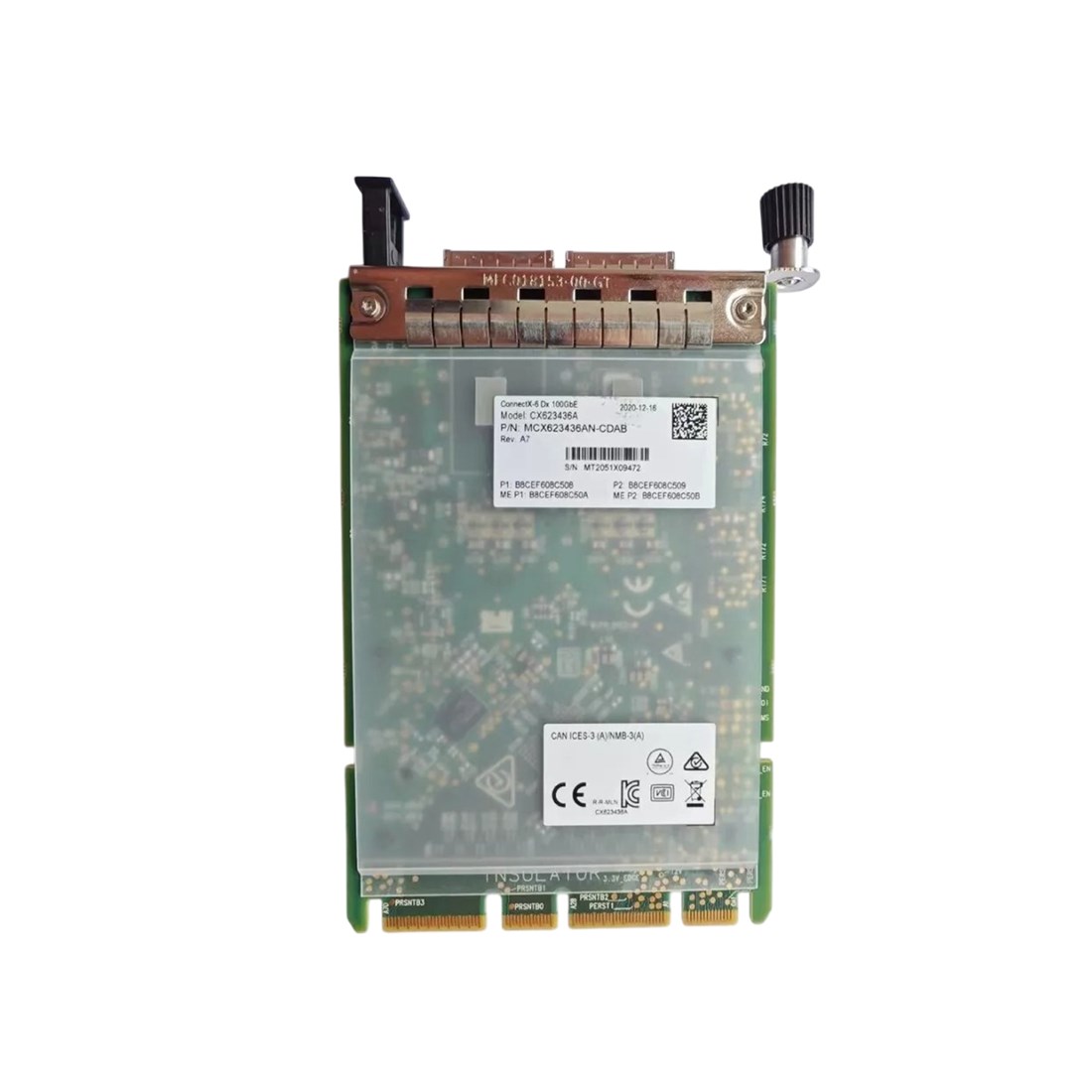

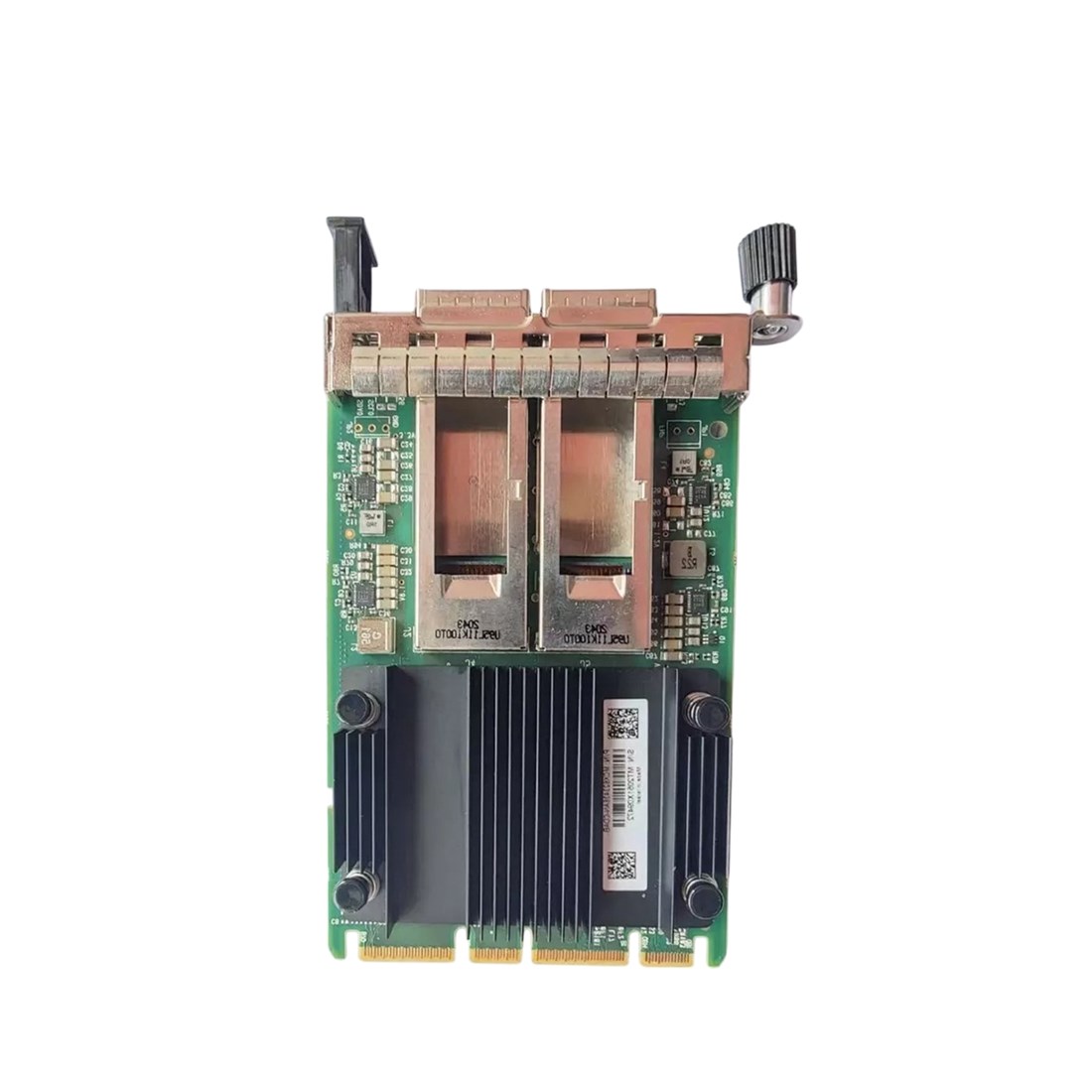

Mellanox MCX623436AN-CDAB ConnectX-6 Dx EN Adapter Card 100GbE OCP3.0 with Host Management Dual-Port QSFP56 PCIe 4.0 X16 No Crypto Thumbscrew (Pull Tab) Bracket

MELLANOX MCX623436AN-CDAB Connectx-6 Dx En Adapter Card 100gbe Ocp3.0 With Host Management Dual-port Qsfp56 Pcie 4.0 X16 No Crypto Thumbscrew (pull Tab) Bracket .

Specifications:

Form Factor : Plug-in Card

Device Type : Network Adapter

Interface (bus) Type: Open Compute Project Mezzanine (ocp) 3.0

Pci Specification Revision: Pcie 4.0

Ports: 100 Gigabit Qsfp56 X 2

Host Interface: Pci Express 3.0 X8

Connectivity Technology Wired

Data Link Protocol: 1gbe, 10gbe, 40gbe, 100gbe, 25gbe, 50gbe

Data Transfer Rate: 100 Gbps

Network / Transport Protocol: Tcp/ip, Udp/ip, Ipsec, Smb, Nfs, Srp

Line Coding Format: Nrz, Pam4

Compliant Standards: Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qbg, Ieee 1588v2, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bs, Ieee 802.3cd

Features: Firewall Protection, Mpls Support, Traffic Shaping, Dos Attack Prevention, Firmware Upgradable, Tunneling, Tcp/ip Offloading, Qos, Pxe Support, Lso, Lro, Rss, Uefi Support, Sr-iov, Aer, Checksum Offload Support, Msi-x, Udp/ip Offloading, Iscsi Remote Boot, Ptp, Ethernet Remote Boot, Tss, Roce, Nc-si, Vxlan, Nvgre, Link Aggregation, Sdn, Dct, MELLANOX Peerdirect, Msi, Eee, Dpdk, Iscsi Extensions Over Rdma (iser), Firmware Root Of Trust, Vlan Tagging, Asap, Mctp Over Smbus, Nfv, Nvmf Offloads, Acs, Pasid, Ats, Peerdirect Rdma, Burst Buffer Offload, Geneve Support, Multi-host Technology, Nvme-of, Netqueue, Mctp Over Pcie Vdm, Socket Direct Technology

Special Feature
