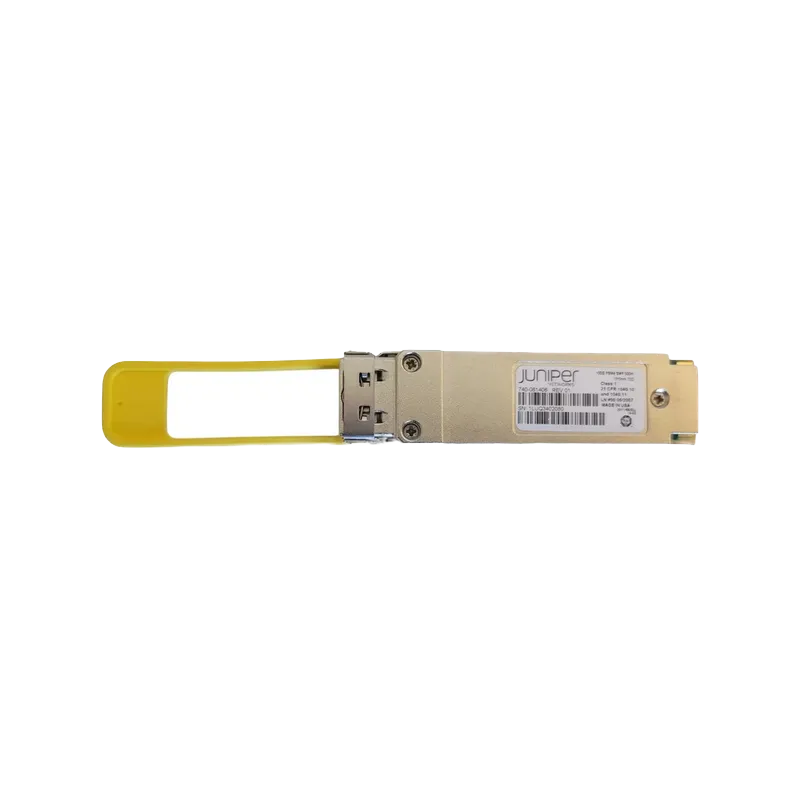

Juniper Networks JNP-QSFP-100G-PSM4 QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF

Juniper Networks JNP-QSFP-100G-PSM4 Qsfp28 100g Base Psm4 Optics For Up To 500 M Transmission Over Parallel Smf

Specifications

Speed 4 X 25 Gigabit Ethernet, 100 Gigabit Ethernet

Breakout Capable Yes

Breakout Cables Mtp-4lc-s1m, Mtp-4lc-s3m, Mtp-4lc-s5m, Mtp-4lc-s10m Can Be Used As Break-out Cables

Transceiver Type Qsfp28

Product Type Optical Transceiver

Connector Mpo-12 Apc

Monitoring Available Yes

Digital Optical Monitoring Yes

Diagnostic Support Yes

Signaling Rate, Each Lane 25.78125 Gbd +/- 100 Ppm

Transmitter Wavelengths (range) 1295 Nm Through 1325 Nm

Transmitter Output Power, Each Lane (minimum) –9.4 Dbm

Transmitter Output Power, Each Lane (maximum) 2.0 Dbm

Receiver Input Power, Each Lane (minimum) –12.66 Dbm

Receiver Input Power, Each Lane (maximum) 2.0 Dbm

Cable Type Smf

Core Size/cladding 9/125 Micrometre

Distance 500 M

Maximum Power Consumption (w) 3.5 W

Operating Temperature (range) 0° C To 70° C

Storage Temperature –40° C To 85° C

Condition: Used Clean Tested.

Availability: In Stock.

Our Warranty: 90 Days.
