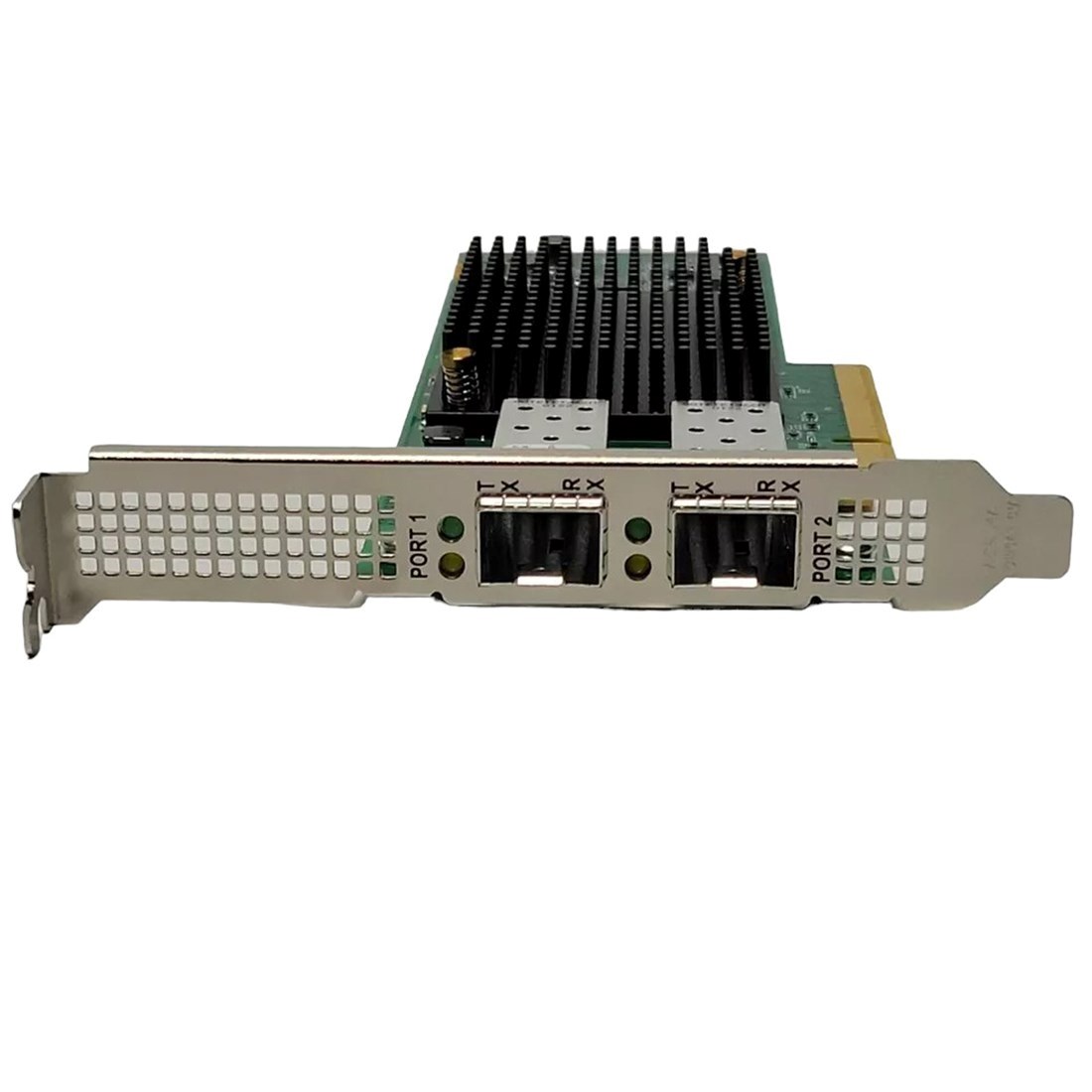

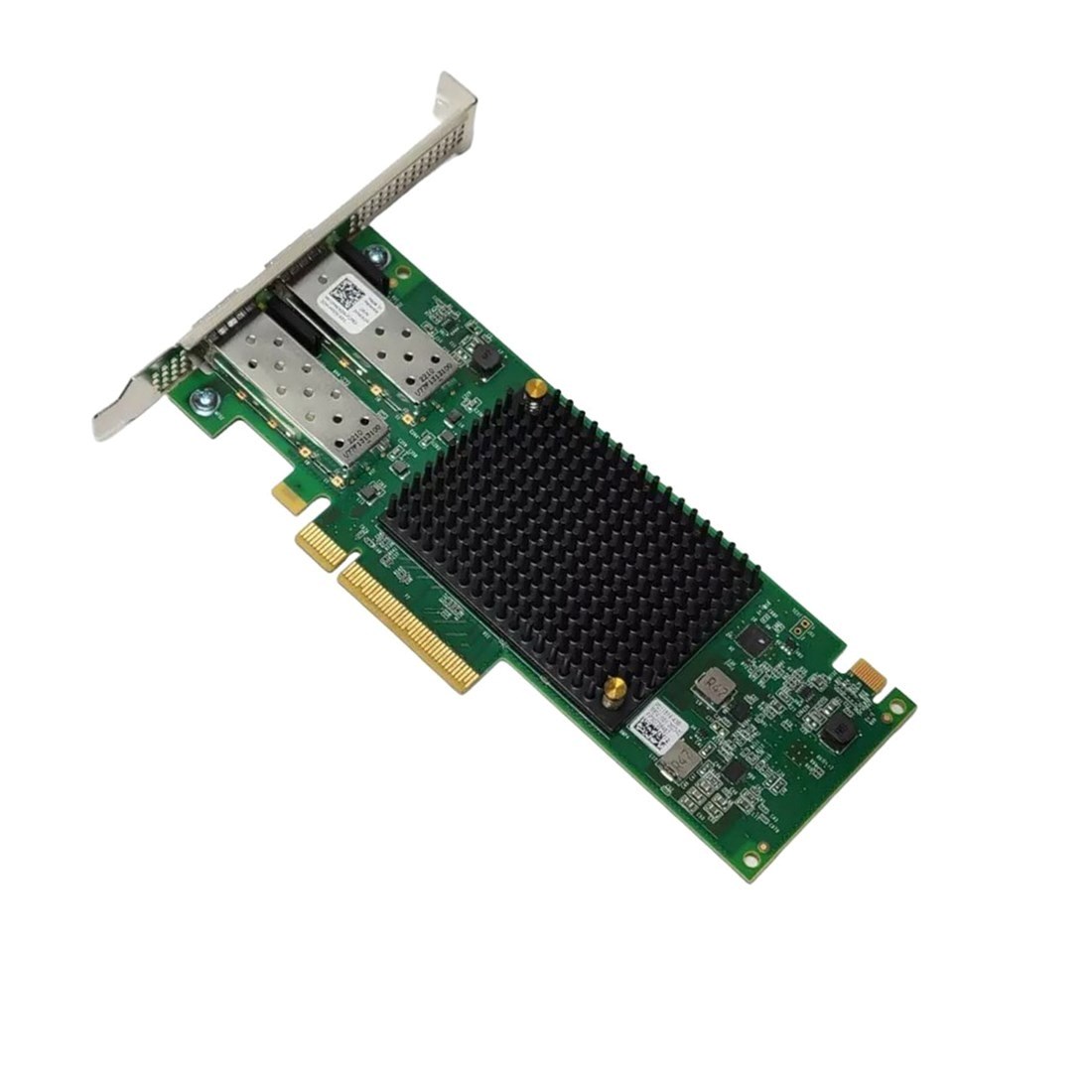

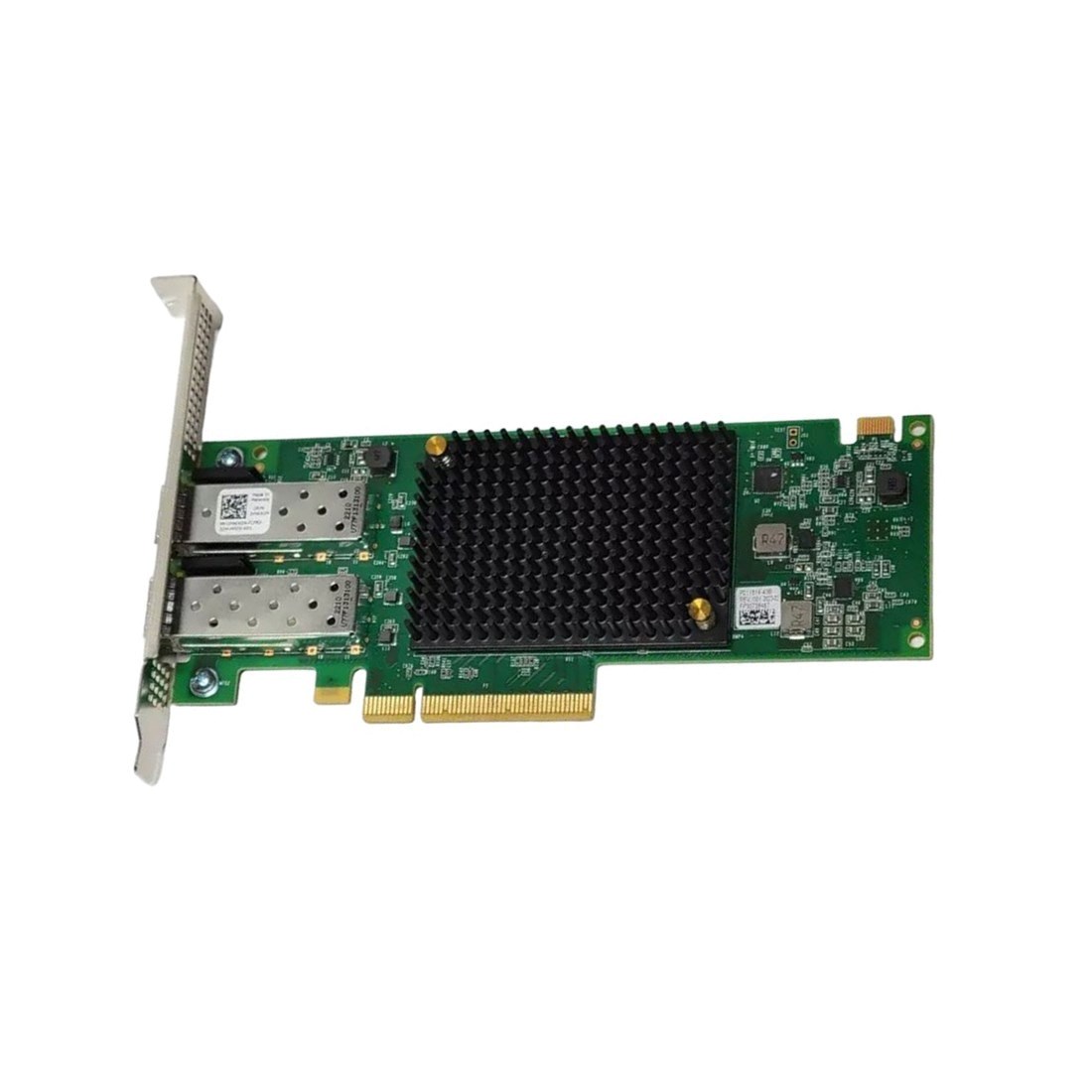

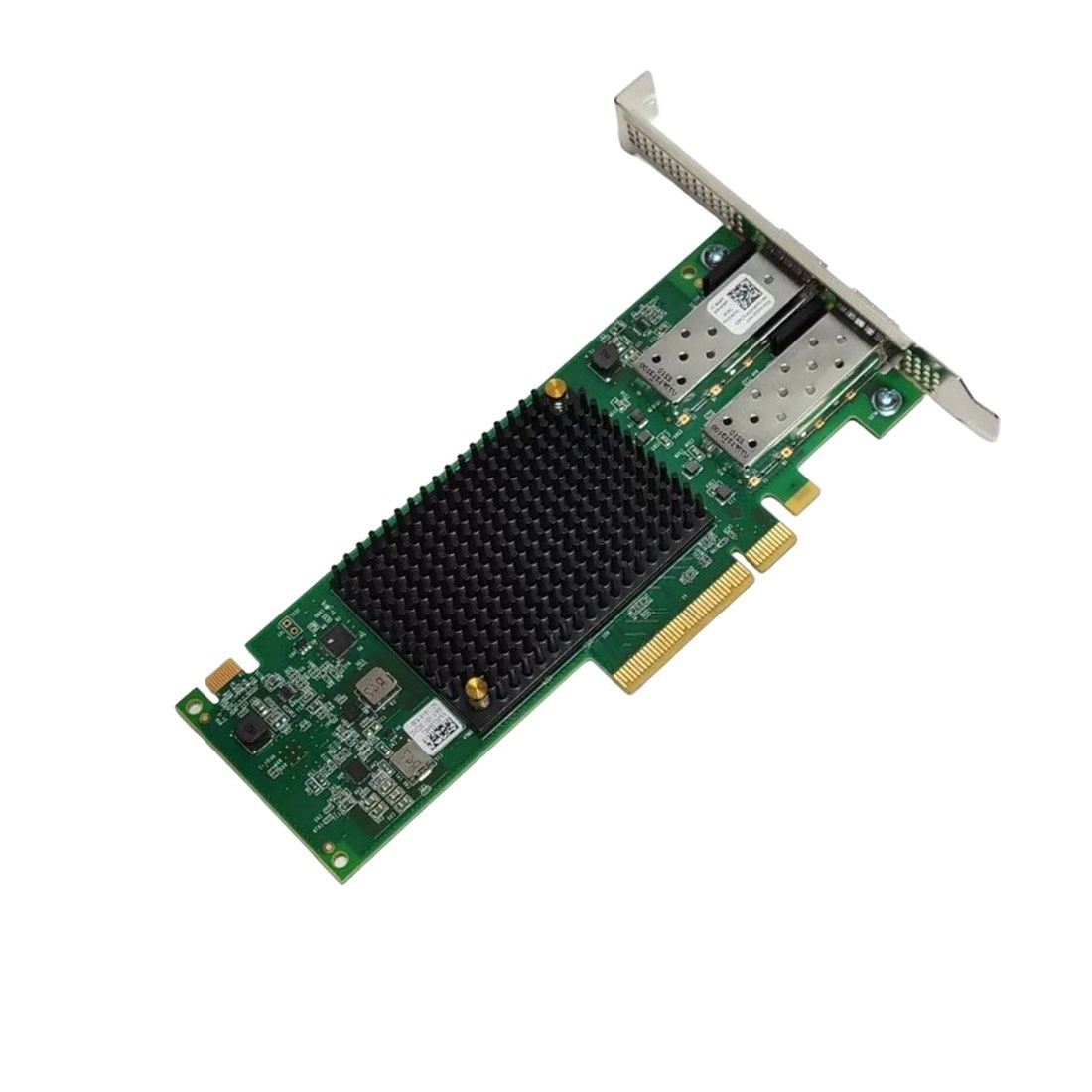

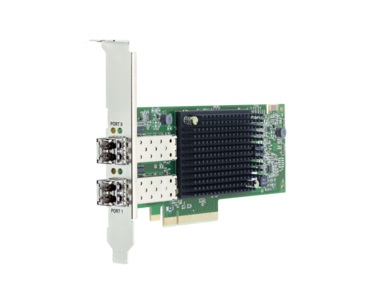

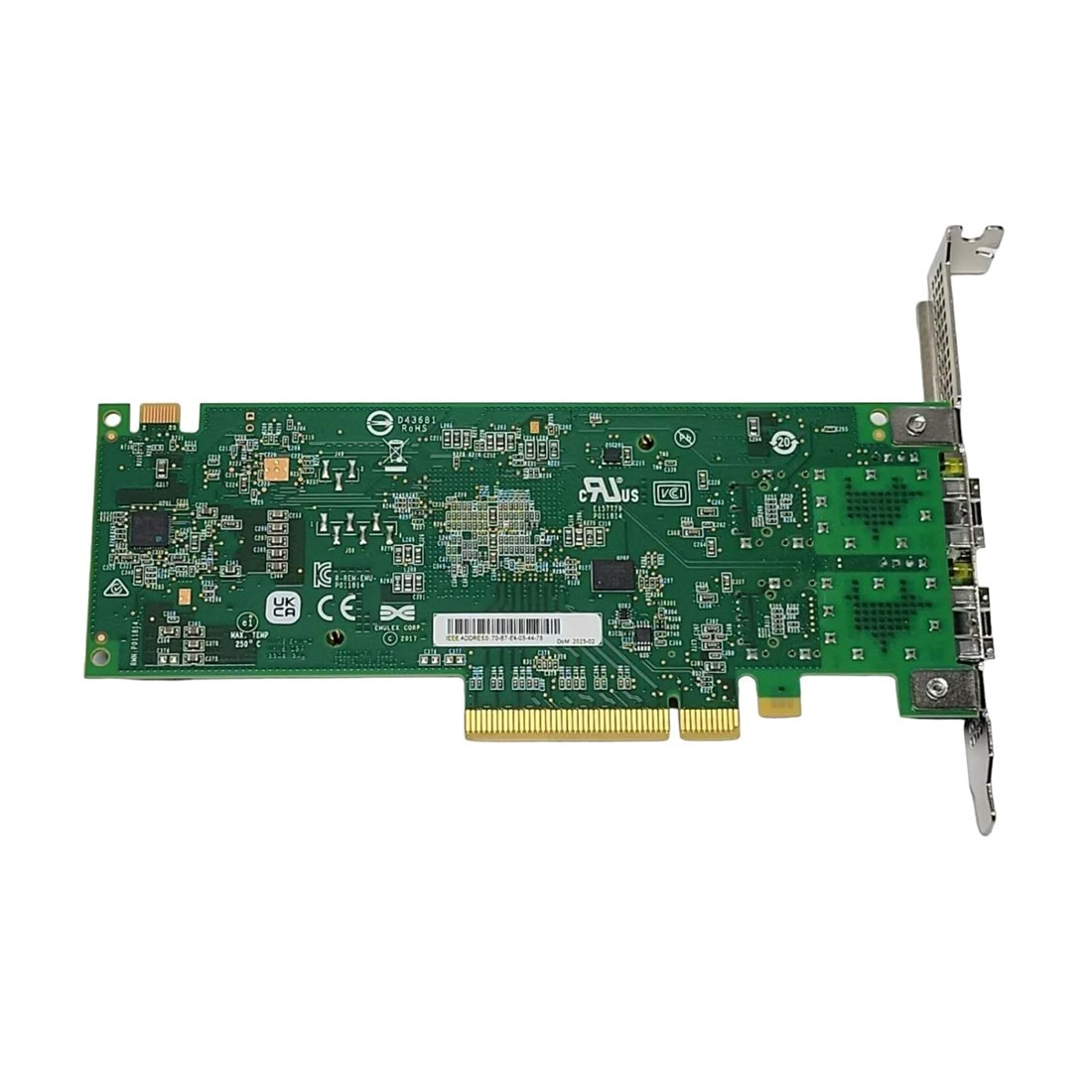

Dell PD89Y Lpe35002 32gb Dual Port Pcie Gen4 X8 Fibre Channel Host Bus Adapter

DELL PD89Y Lpe35002 32gb Dual Port Pcie Gen4 X8 Fibre Channel Host Bus Adapter With High Profile Bracket.

Part Number: PD89Y

Manufacturer: DELL

Technical Specification :

• Generation : Gen 7 (64/32gfc)

• Cable Support : 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om4 Mmf, 0.5m To 100m At 64gfc/32gfc On 50/125 Μm Om5 Mmf, 0.5m To 70m At 64gfc/32gfc On 50/125 Μm Om3 Mmf, 10 Km At 32gfc/16gfc On 9/125 Μm Singlemode Fiber When Emulex Approved Longwave Transceivers Are Used

• Optical Data Rates : 28.05 Gb/s (3200mb/s), 14.025 Gb/s (1600mb/s), 8.5 Gb/s (800mb/s) (auto-detected)

• Hardware Environment: Intel X64, Intel X86, And Powerpc

• Ports : 2

• Optics : Optics Short Wave Lasers With Lc Type Connector Optics

• Host Bus Type : Pcie Gen4 X8

• I/o Controller : Xe601

• Operating Humidity: 5% To 95% Non-condensing

• Operating Temperature : 0°c To 55°c

• Storage Temperature : -20° To 85°c (-4° To 185°f)

• Os Support : Additional Support Is Available From Oems And Partners, Microsoft Windows, Oracle Linux, Oracle Linux With The Unbreakable Enterprise Kernel (uek), Oracle Solaris, Red Hat Enterprise Linux, Suse® Linux Enterprise Server, Vmware Vsphere

Physical Dimensions :

• 167.64mm X 68.91mm (6.60” X 2.71”)
