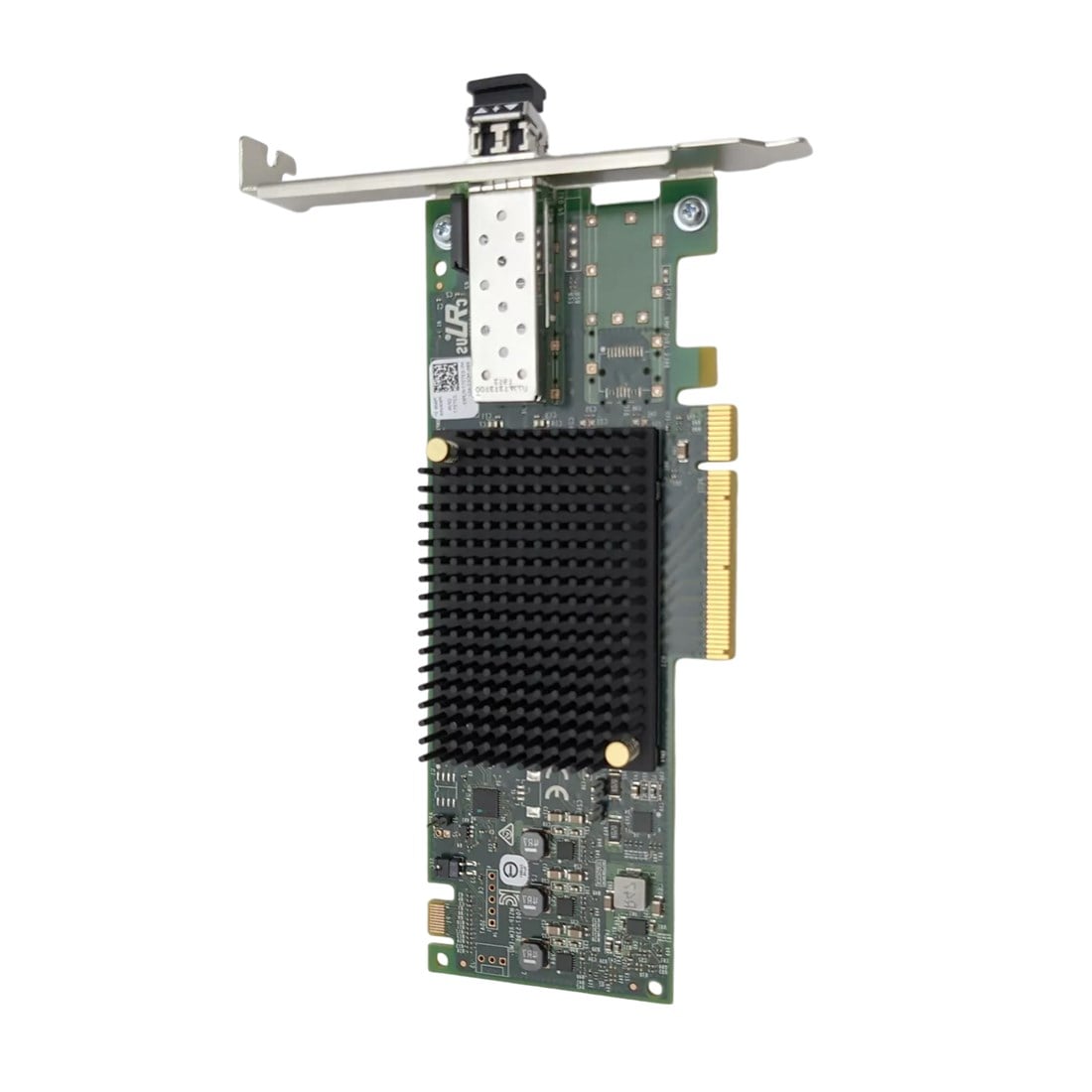

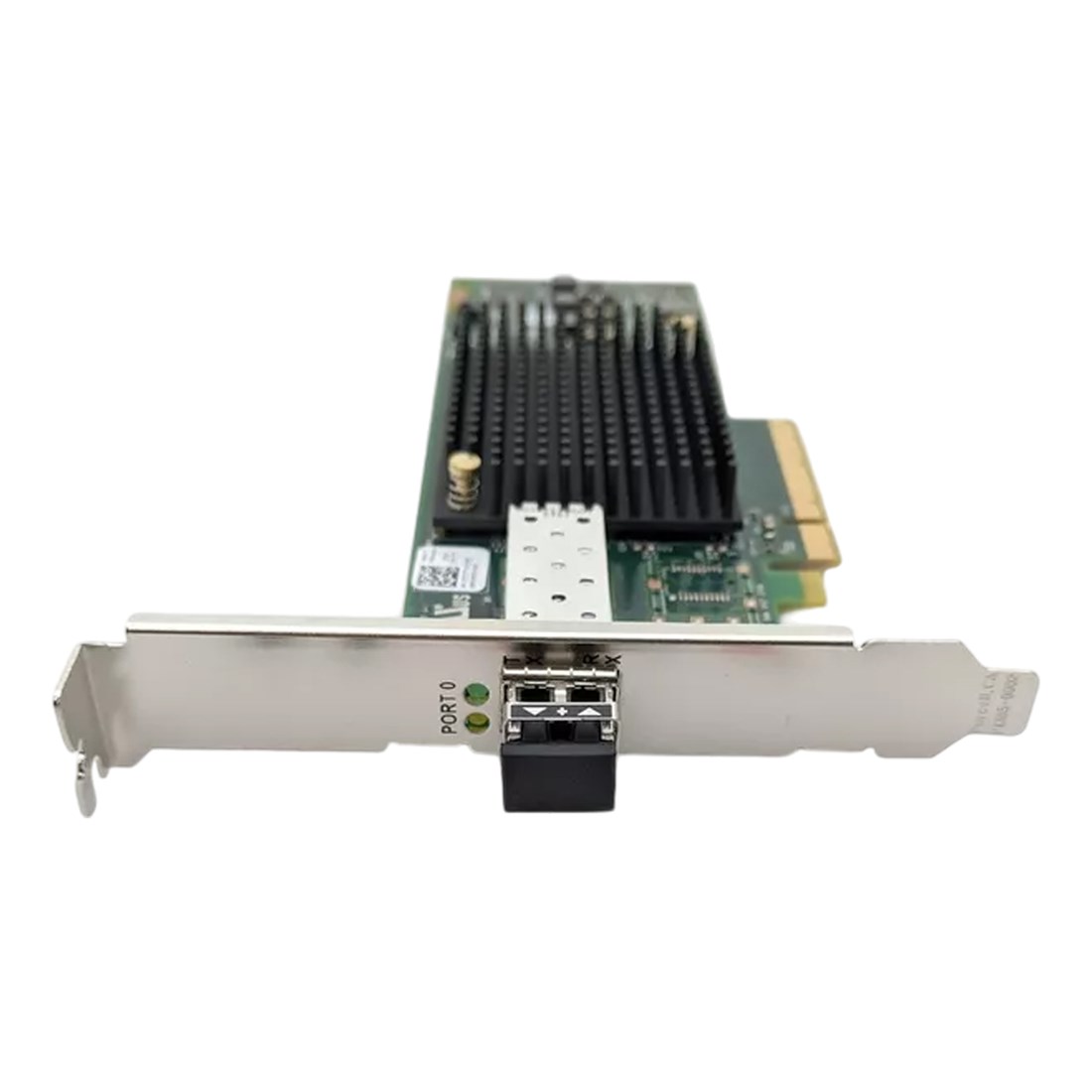

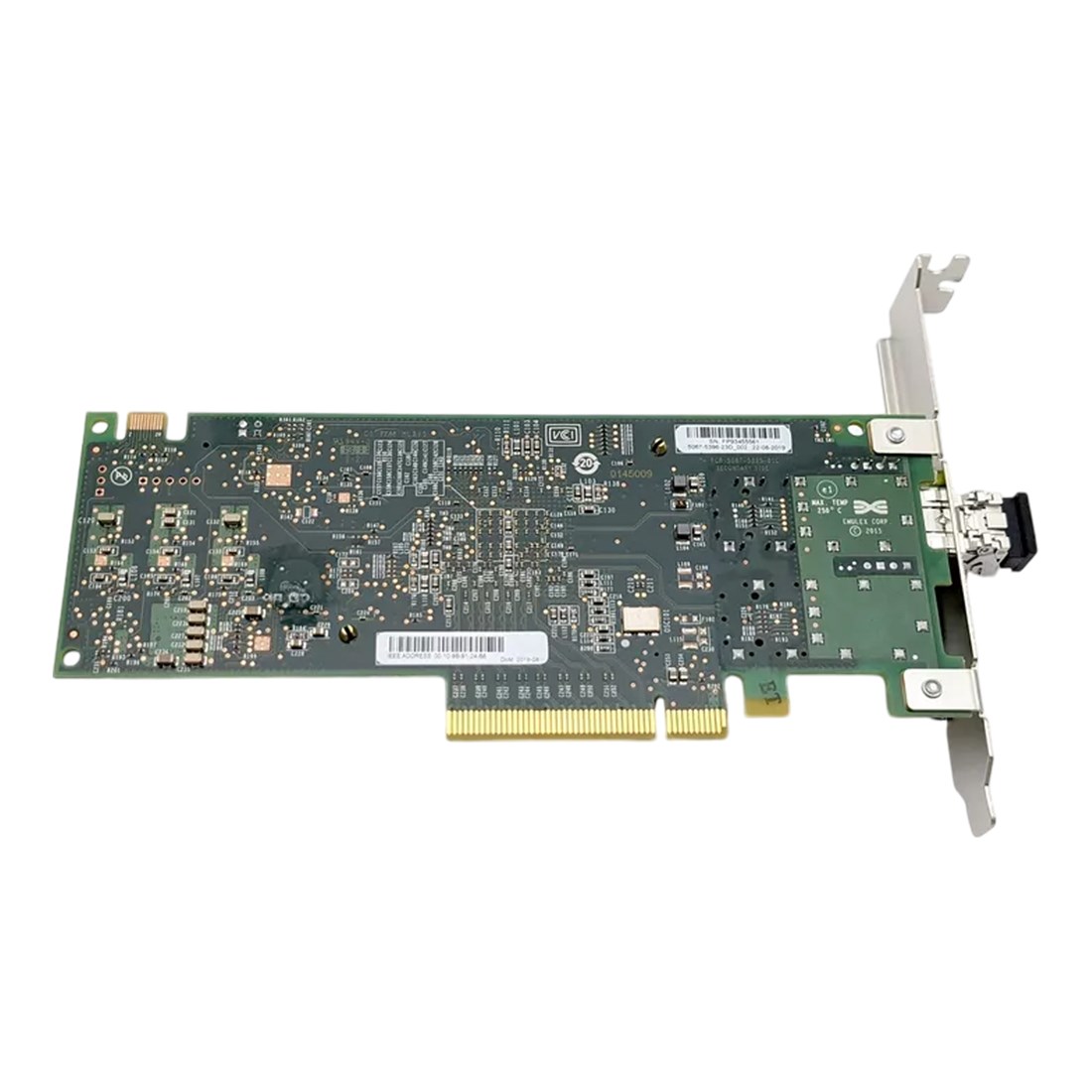

Dell 3T3T7 Emulex LPe31000-M6-D Single Port 16GB Fibre Channel Host Bus Adapter FH

DELL 3T3T7 Emulex Lpe31000-m6-d Single Port 16gb Fibre Channel Host Bus Adapter

Overview The Emulex Lpe31000-m6-d Host Bus Adapter From DELL™ Offers An Exceptional Performance And Advanced Management Functionality That Can Shave Days Off Installing And Managing Adapters. It Is Coupled With Up To 3x Better Iops Performance Per Watt, Which Makes DELL 16gb Fibre Channel (16gfc) Host Bus Adapters The Clear Choice For The Toughest Virtualized, Cloud And Mission Critical Deployments.

Technical Specifications

Form Factor Plug-in Card

Device Type Host Bus Adapter

Interface (bus) Pci Express 3.0 X8

Pci Specification Revision Pcie 3.0

Ports 16gb Fibre Channel X 1

Connectivity Technology Wired

Cabling Type Fibre Optic

Data Link Protocol 16gb Fibre Channel

Data Transfer Rate 14.025 Gbps

Fibre Channel Fc-da, Fc-fs, Fc-gs-2, Fc-gs-3, Fc-gs-4, Fc-mi, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-tape, Fcp-4, Fcp-2, Fc-pi-2, Fc-gs-5, Fcp-3, Fc-pi-4, Fc-fs-3, Fc-gs-6, Fc-pi-3, Fc-hba, Fc-pi-5, Fc-ls-2, Fc-da-2, Ssc-2, Sbc-2, Spc-3, Fc-pi-6, Sbc-3, Spc-4, Ssc-4

Features Forward Error Correction (fec)

Compliant Standards Csa, Ul, Fcc, Rohs, Tuv Bauart, Bsmi Class A, Ices Class A, Vcci Class A, Msip Class A, China Rohs, Rcm

Os Required Suse Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux

Min Operating Temperature 0 °c

Max Operating Temperature 55 °c

Humidity Range Operating 5 – 95% (non-condensing)
